제품 상세 정보:
|
| CRI (Ra>): | 80 | Keyword: | Garden light tree lamp spot lighting |
|---|---|---|---|
| Lens: | Optical lens,effciency≥85% | Cable gland: | IP68,PG9 nickel coated copper |
| Usage: | Outoors Patio Pathway Landscape Garden | Material: | Extruded aluminum alloy #6063 |

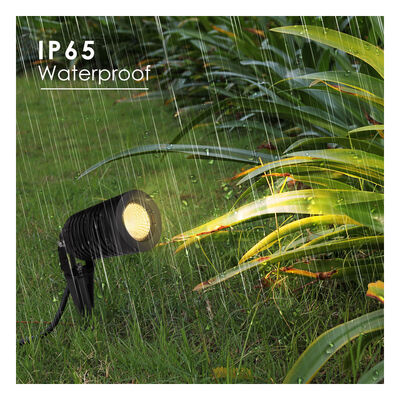

| 강조하다: | 14W COB garden spike light,aluminum outdoor accent lighting,IK04 rated LED garden light |
||
| Item No. | Light Source | Lens Beam Angle | Power Consumption | Input Voltage | IK Rating |
|---|---|---|---|---|---|
| B83314COB B83514COB |
1×14W CREE | 15°/25°/38°/60° | 14W | DC24V | 4 |
| B83314COB B83514COB |
1×14W CREE | 15°/25°/38°/60° | 14W | AC100-240V | 4 |
| Component | Specification |
|---|---|
| Housing | Extruded aluminum alloy #6063, anodic oxidation or outdoor powder painting |
| Glass | Tempered glass, T=3mm |
| Lens | Optical lens, efficiency ≥85% |
| Cable Gland | IP68, PG9 nickel coated copper |
| Gasket | Tooling shaped seal |
| LED | CREE COB LED, Ra>80 |
| Driver | Constant current output |
| Spike | PVC (grey or black) |
| Mounting Base | Anodic oxidation or outdoor powder painting |
| Power Cable | H05RN-F 2×0.75mm² L=1m (low voltage) H05RN-F 3×0.75mm² L=1m (high voltage) |
| Honeycomb | Optional Parts |
| Anti-glare Hood | Optional Parts |
Joyful Lamp Co., Ltd. specializes in high-quality LED outdoor lighting with over 16 years of expertise. We produce a wide range of waterproof (IP65/67/68) products including garden, wall, pool, and solar lights, certified with CE, ROHS, and ISO 9001. Our precision casting and structural waterproof design ensure durability. Products are exported worldwide with OEM/ODM services available. Contact us for reliable solutions!
