제품 상세 정보:
|
| 색온도(CCT): | 2700K-6500K | 연색지수(Ra): | 80 |
|---|---|---|---|
| 조명 솔루션 서비스: | 프로젝트 설치 | 제품 중량(kg): | 5.5 |
| 보증기간(년): | 2년 | 입력전압(V): | DC24V |
| 근무수명(시간): | 50000 | 애플리케이션: | 계단, 계단, 갑판, 보트, 습한 환경 |
| 유리: | 7mm 온화 step glass | LED 소스: | 24*1W |
| 렌즈 효율성: | ≥85% | 운송 패키지: | 내진성 판지 상자 |
| 강조하다: | stainless steel LED underground light,IP67 recessed linear LED light,DC24V 1meter underground light |
||
| Item No | Light Source | Beam Angle | Wattage | IK Rate | Voltage |
|---|---|---|---|---|---|
| 8210241 | 24×1W LED | 15°/25°/30°/45°/60°/asymmetrical lens | 24 | 08 | DC12V |
| 8210241H | 24×1W LED | 15°/25°/30°/45°/60°/asymmetrical lens | 24 | 08 | AC100-240V |
| 8210242 | 24×2W LED | 15°/25°/30°/45°/60°/asymmetrical lens | 48 | 08 | DC12V |
| 8210242H | 24×2W LED | 15°/25°/30°/45°/60°/asymmetrical lens | 48 | 08 | AC100-240V |

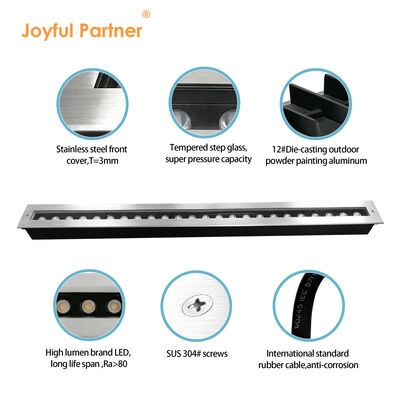

| Housing | Outdoor dark grey powder coated aluminum T=60-80μm Adhesion ISO Glass 1/ASTM Glass 4B |
| Front Cover | Hard chrome plate 304# or 316# Stainless Steel |
| Lens | Optical lens, efficiency ≥85% |
| Glass | Tempered step glass T=7mm |
| Glass Pressure Capacity | Full area = 1700kgs |
| Gasket | Molding shaped silicone seal |
| Operating Temperature | -20℃ to 40℃ |
| Power Cable | H05RN-F 2×0.75mm² L=0.5m (low voltage) H05RN-F 3×0.75mm² L=0.5m (for single color/high voltage) |
| Mounting Sleeve | ABS |
